Blind Rivet Auto-Feeder_Vibratory Bowl Loading_High-Speed Rivet Pickup Machine - BISUDI
Brand: BISUDI
[Riveting Force]: 12800N
[Working Voltage]: 220V 50Hz
[Overall Dimensions]: 420*253*385mm
Blind rivet auto-feeder, vibratory bowl automatic loading rivet machine, high-speed rivet pickup machine. Efficient, stable, and easy to operate.
+86 13556668682
Product IntroductionBISUDI
Blind Rivet Auto-Feeder (Vibratory Bowl Loading) 【Product Introduction】

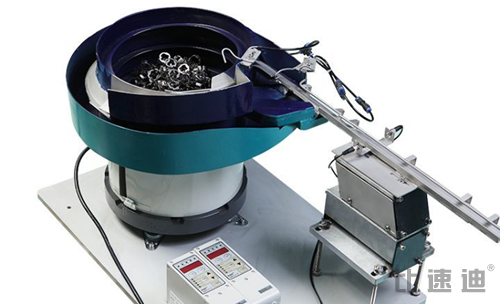

The BISUDI blind rivet auto-feeder uses a vibratory bowl for automatic loading. Disorganized blind rivets are automatically aligned, separated, and delivered to the rivet separator through the vibratory bowl. Combined with a rivet gun, it enables high-speed rivet pickup and continuous riveting, making it a cost-effective solution for automating riveting processes.
The vibratory bowl loading structure is simple, reliable, and easy to maintain. It supports multiple specifications of blind rivets, and the vibratory bowl track can be customized according to customer rivet sizes to meet the riveting needs of different workpieces.
Blind Rivet Auto-Feeder (Vibratory Bowl Loading) 【Core Features】
| No. | Core Feature | Description |
|---|---|---|
| 1 | Vibratory Bowl Loading | Rivets automatically aligned and separated, eliminating manual pickup |
| 2 | Auto Refill | Next rivet automatically fed after each riveting cycle |
| 3 | Intelligent Counting | Digital display counts rivet quantity (optional) |
| 4 | Count Error-Proofing | Intelligent counting prevents missed rivets (optional) |
| 5 | Custom on Demand | Vibratory bowl track customized by rivet specification, high adaptability |
Blind Rivet Auto-Feeder (Vibratory Bowl Loading) 【Technical Specifications】
| Parameter | Specification | Description |
|---|---|---|
| Brand | BISUDI | Source manufacturer direct sales |
| Loading Method | Vibratory bowl automatic alignment feeding | High-speed rivet pickup, automatic loading |
| Feeding Speed | Continuous automatic rivet supply | Instant pickup at gun nozzle as you shoot |
| Applicable Rivets | Multiple specifications of blind rivets | Track customized by sample |
| Optional Functions | Intelligent counting, count error-proofing | — |
| Riveting Capacity | 12800N | Standard model configuration |
| Working Voltage | 220V / 50Hz | — |
| Main Unit Dimensions | 420×253×385mm | Customized by workpiece |
| Warranty Service | 1-year warranty | Nationwide free delivery to your door |
Note: The above are common parameters for standard models. Actual configuration varies with rivet specifications, pulling force, and non-standard workload, subject to solution confirmation. Customers nationwide can book a free on-site trial to verify with actual measured cycle time and yield rate.
Blind Rivet Auto-Feeder (Vibratory Bowl Loading) 【Application Scenarios】
Suitable for industries with relatively single rivet specifications seeking low-cost automation upgrades, such as chassis, hardware, home appliances, and crafts.
Blind Rivet Auto-Feeder (Vibratory Bowl Loading) 【Service Guarantee】
BISUDI source manufacturer provides customized vibratory bowl loading solutions. Free on-site trial. Welcome to provide rivet samples for assessment and selection.
