Automatic Riveting Machine_Fast Auto-Feed Without Jamming_One Machine Replaces 3 Workers_Direct from Source Manufacturer - BISUDI
Brand: BISUDI
[Riveting Force]: 12800N
[Working Voltage]: 220V 50Hz
[Overall Dimensions]: 555*420*400mm

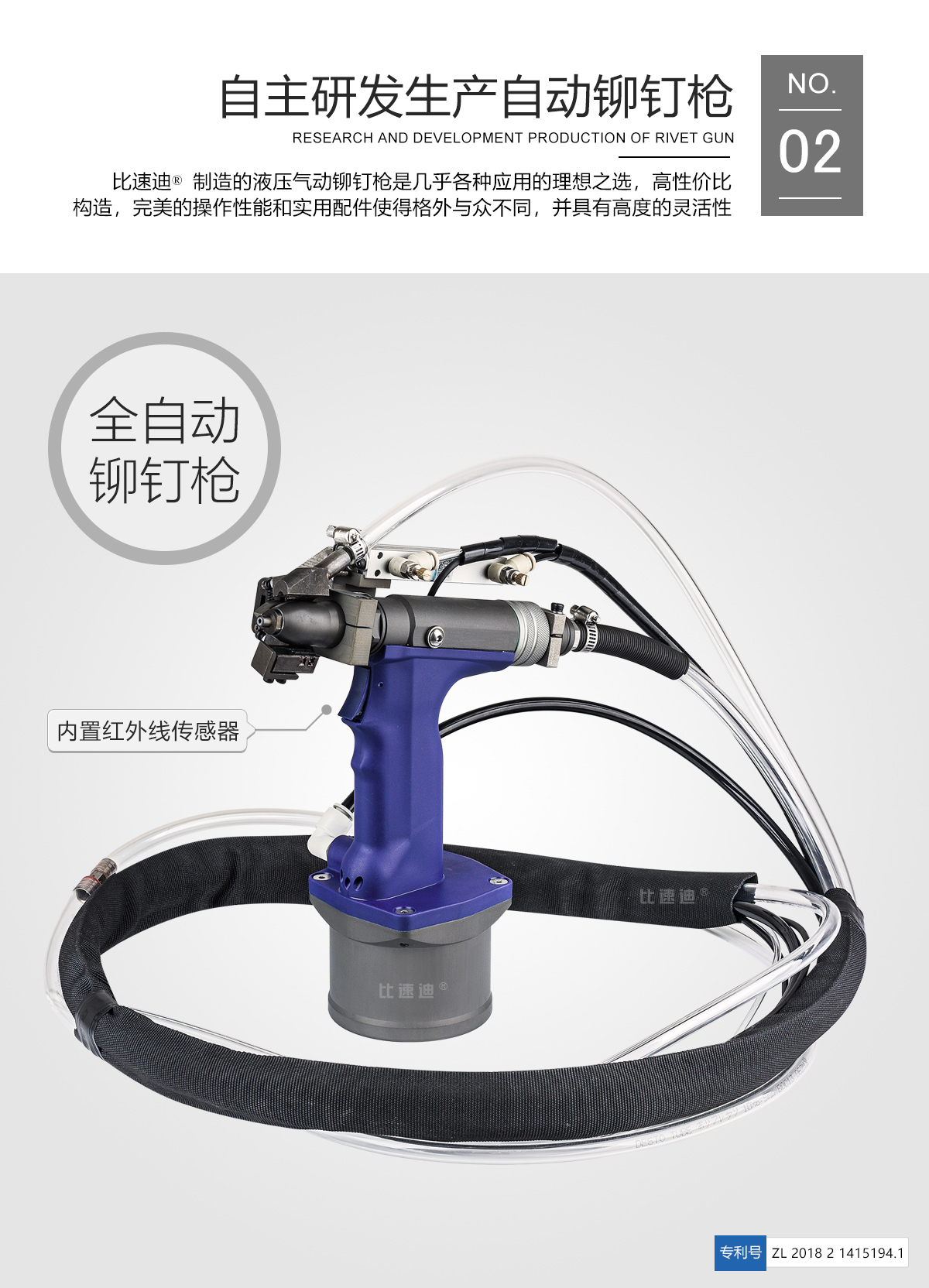

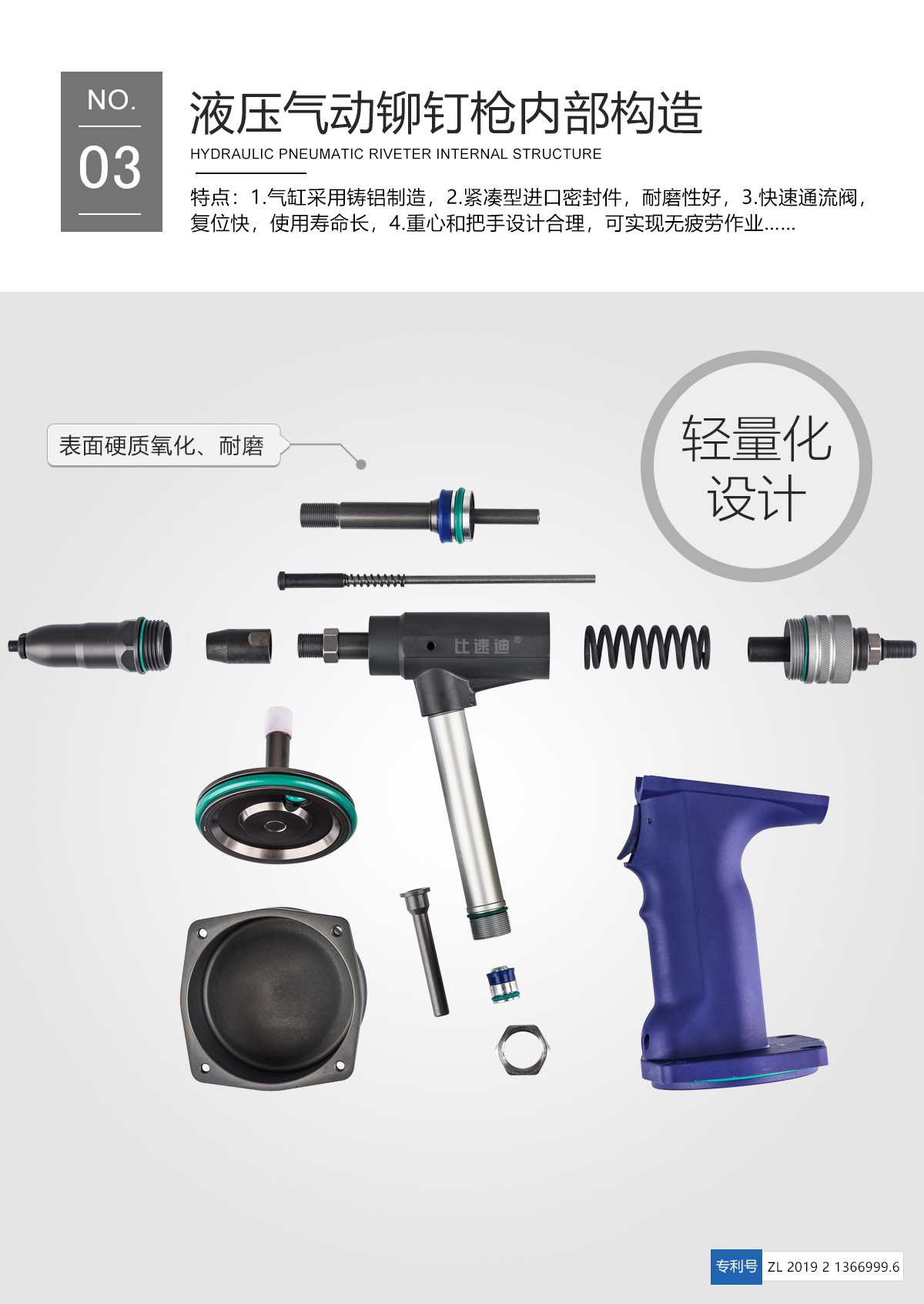

BISUDI Automatic Riveting Machine, using German high-precision machining technology. The rivet gun cylinder inner wall has a grinding precision of ≤0.4; the cylinder uses forged piping with 1.6x increased strength. Shipping failure rate controlled below 0.3% over 6 years. Original imported accessories, German-imported carbon-steel three-jaw with a service life of up to 6 million cycles. BISUDI automatic riveting machine is efficient, stable, easy to operate, and has a counting function.
+86 13556668682
Product IntroductionBISUDI
Automatic Riveting Machine [Product Introduction]

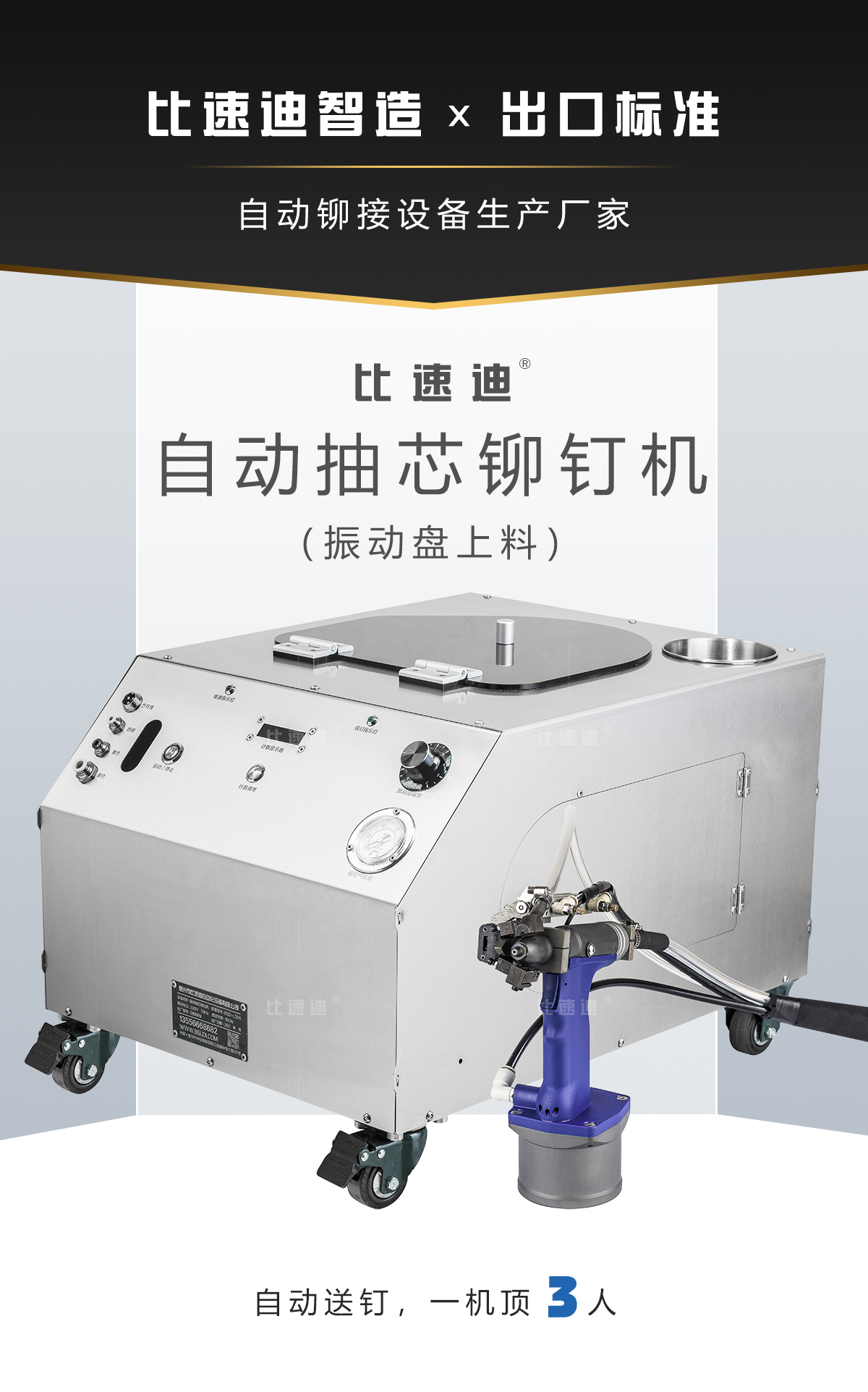

BISUDI's automatic riveting machine is an auto-feed riveting device developed specifically for automated production lines. It automatically arranges and separates blind rivets, and uses compressed air to deliver them through piping to the rivet gun nozzle, completely replacing manual rivet picking, alignment and feeding. One machine replaces 3 workers, saving enterprises over 50% in labor costs.
Unlike traditional manual riveting, BISUDI's automatic riveting machine does not rely on skilled workers - beginners can quickly get to work after simple training. The whole machine uses imported components, auto-feeds without jamming, and reaches a cycle speed of 80/min. It is suitable for high-volume riveting scenarios such as computer chassis, servers, sheet metal and home appliances, and is the preferred equipment for automation upgrading in the riveting industry.
Automatic Riveting Machine [Core Features]

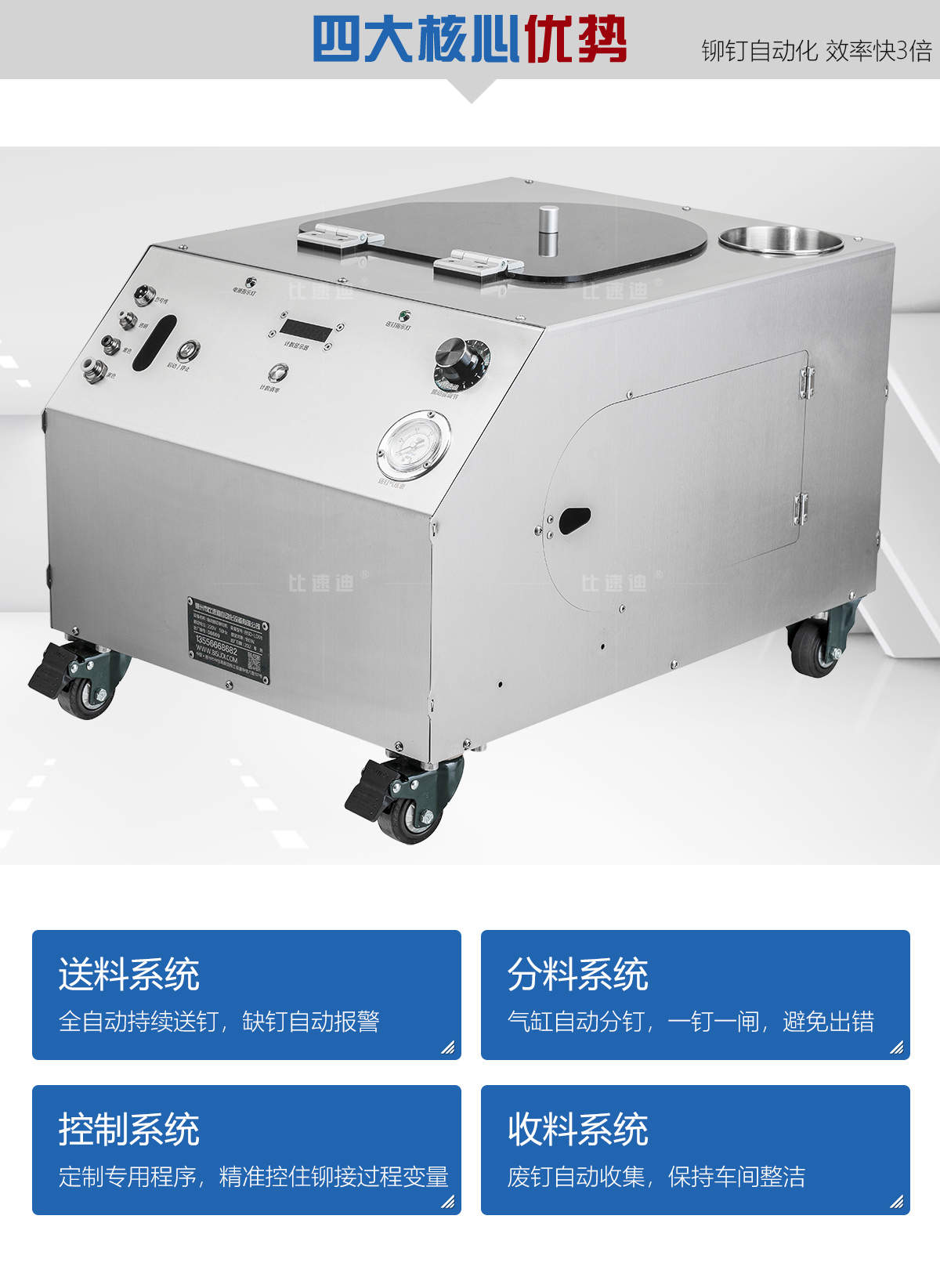

| No. | Core Feature | Details |
|---|---|---|

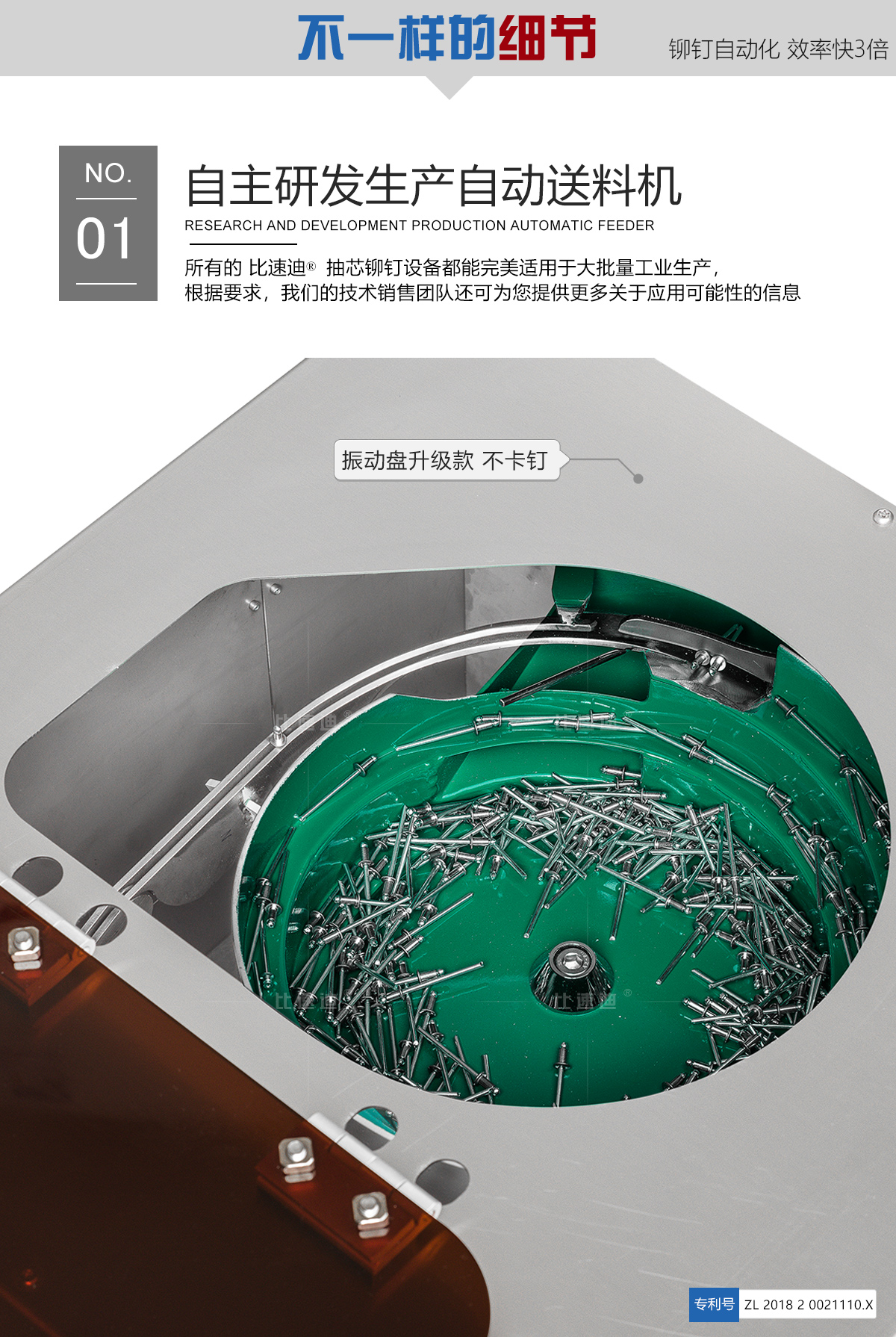

| 1 | Auto-feed | Rivets poured into the hopper auto-arrange in order, reach the gun nozzle through the feed tube, saying goodbye to manual loading |
| 2 | Auto-refill | Auto-loads the next rivet after each riveting action, no manual intervention throughout |
| 3 | Smart counting | Digital display counts rivets in real time, quantity error-proof and miss-rivet prevention |
| 4 | Mandrel collection | Blind rivet mandrels are auto-recovered through the mandrel tube into the collection bucket, keeping the workshop clean |
| 5 | Reliable quality | Imported components, 30,000-cycle riveting test without jamming, low failure rate, 10+ year lifespan |

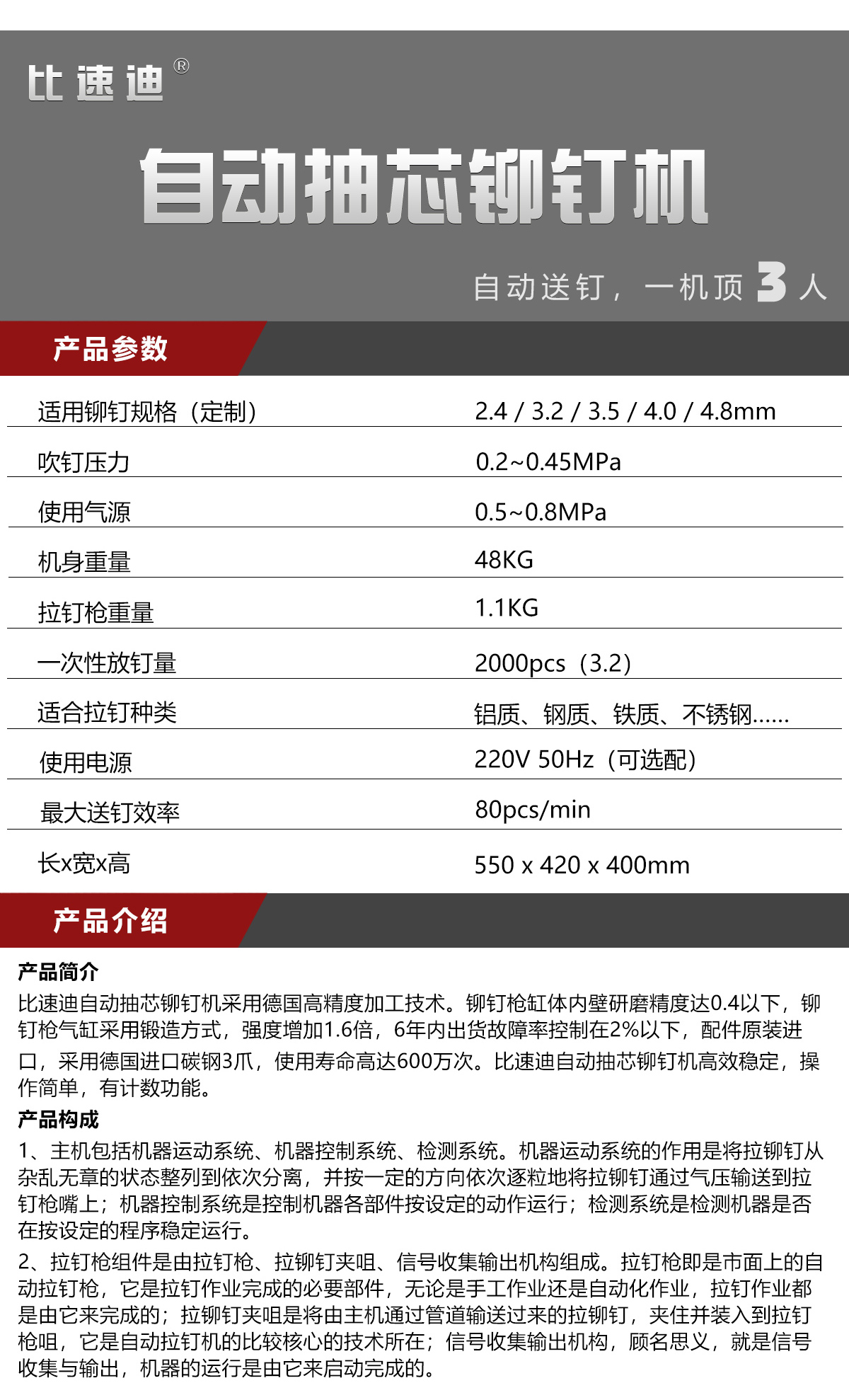

Automatic Riveting Machine [Technical Specifications]
| Parameter | Specification | Details |
|---|---|---|
| Brand | BISUDI | Direct from source manufacturer |
| Riveting capacity | 12800N | Standard model pull force, larger specs customizable |
| Cycle speed | About 80/min (about 1.2 sec/rivet) | Auto-feed, auto-refill, continuous operation |
| Feeding method | Compressed-air auto-feed | Rivets reach the gun nozzle directly through the feed tube, no manual picking or alignment |

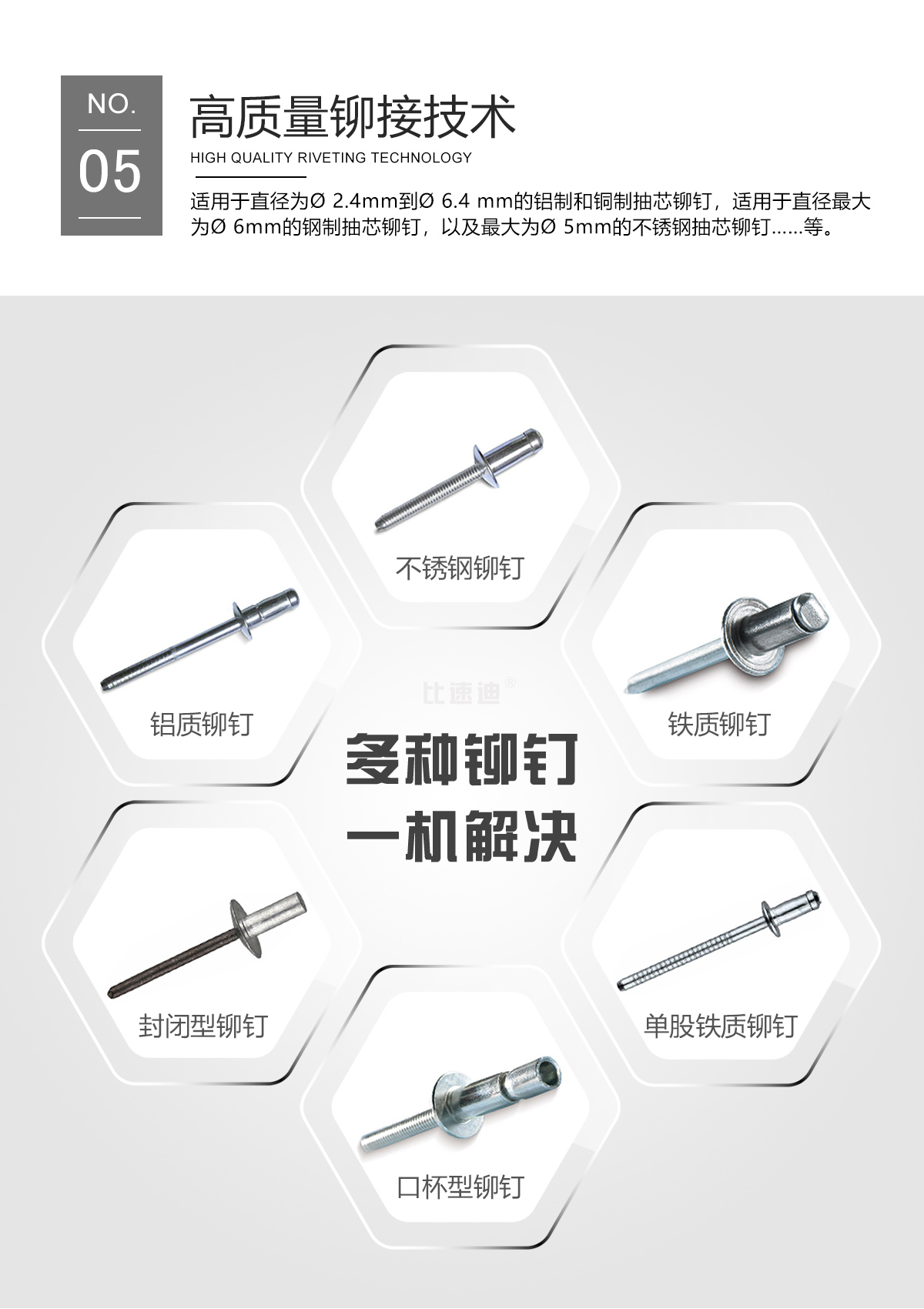

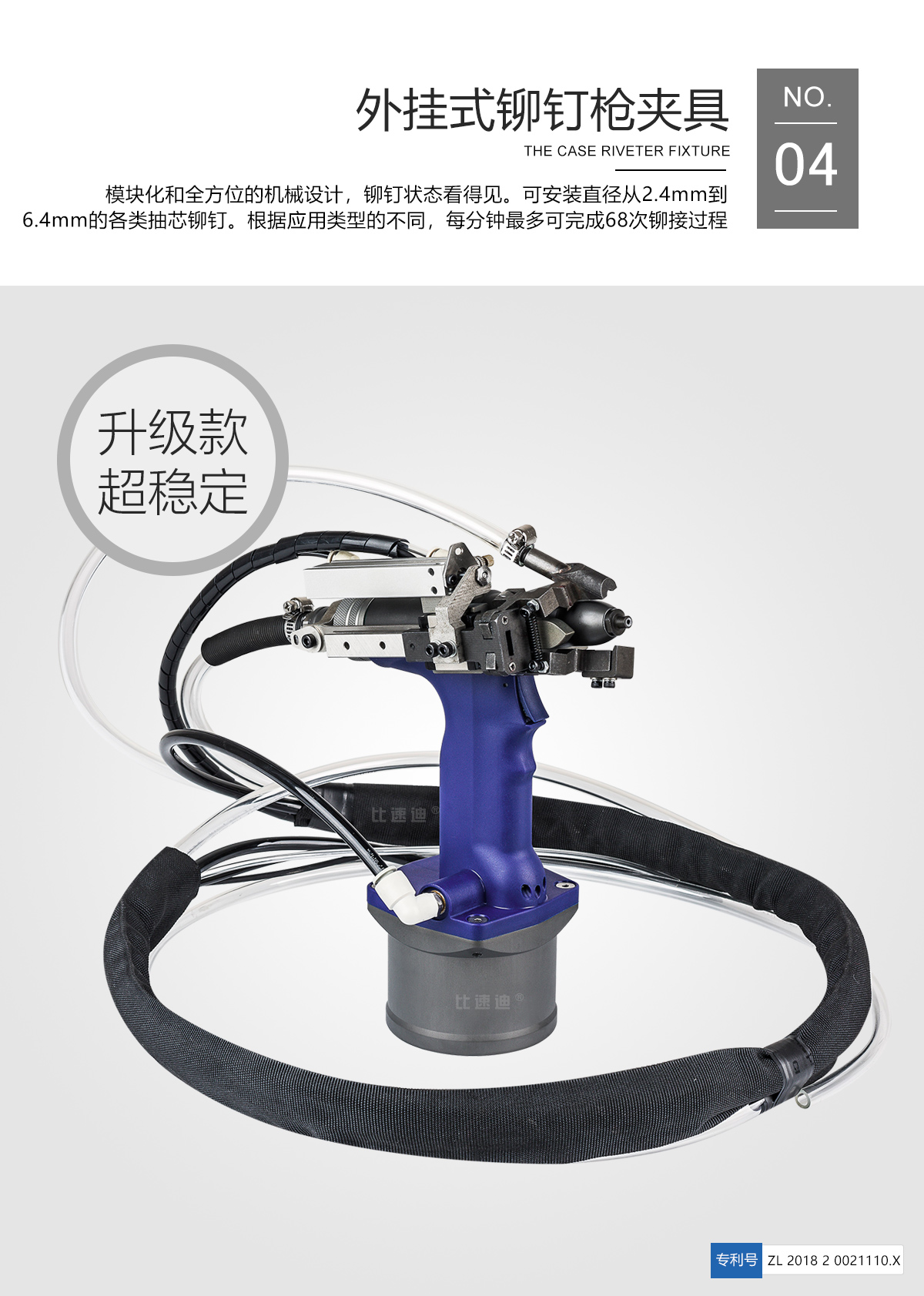

| Applicable rivets | Aluminum, steel, stainless-steel blind rivets | Specs customized per workpiece |
| Control method | PLC smart control | Digital counting display, quantity error-proof and miss-rivet prevention |
| Working voltage | 220V / 50Hz | — |
| Main unit dimensions | 555×420×400mm | Workbench and fixtures designed per workpiece |
| Mandrel handling | Mandrel tube auto-recovers into collection bucket | Keeps workshop clean |
| Reliability | 30,000 consecutive rivets without jamming | Imported components, three-jaw life about 6 million cycles, shipping failure rate about 0.3% |
| Design lifespan | Over 10 years | — |
| Warranty service | 1-year whole-machine warranty | 7-day return and 15-day exchange for non-human issues, free on-site installation and commissioning |
Note: The above are common specs for standard models. Actual configuration varies with rivet size, pull force and non-standard workload, subject to final solution confirmation. Customers nationwide may book a free on-site trial to verify actual cycle time and yield.
Automatic Riveting Machine [Applications]
Riveting operations in industries such as computer chassis, servers, sheet metal processing, home appliances, microwave ovens, washing machines, air conditioners, range hoods, aluminum single panels, aluminum ladders and automotive interiors.
Automatic Riveting Machine [Service & Support]
Direct from the source manufacturer, free on-site trial service with on-site evaluation of actual results; 1-year warranty, 7-day return and 15-day exchange for non-human issues, free nationwide delivery, installation and commissioning.
