Automatic Riveting Machine Video_Working Demo_Auto-Feed Without Jamming - BISUDI
Brand: BISUDI
[Riveting Force]: 12800N
[Working Voltage]: 220V 50Hz
[Overall Dimensions]: 420*305*400mm
BISUDI Automatic Riveting Machine, using German high-precision machining technology. The rivet gun cylinder inner wall has a grinding precision of ≤0.4; the cylinder uses forged piping with 1.6x increased strength. Shipping failure rate controlled below 0.3% over 6 years. Original imported accessories, German-imported carbon-steel three-jaw with a service life of up to 6 million cycles. BISUDI automatic riveting machine is efficient, stable, easy to operate, and has a counting function.
+86 13556668682
Product IntroductionBISUDI

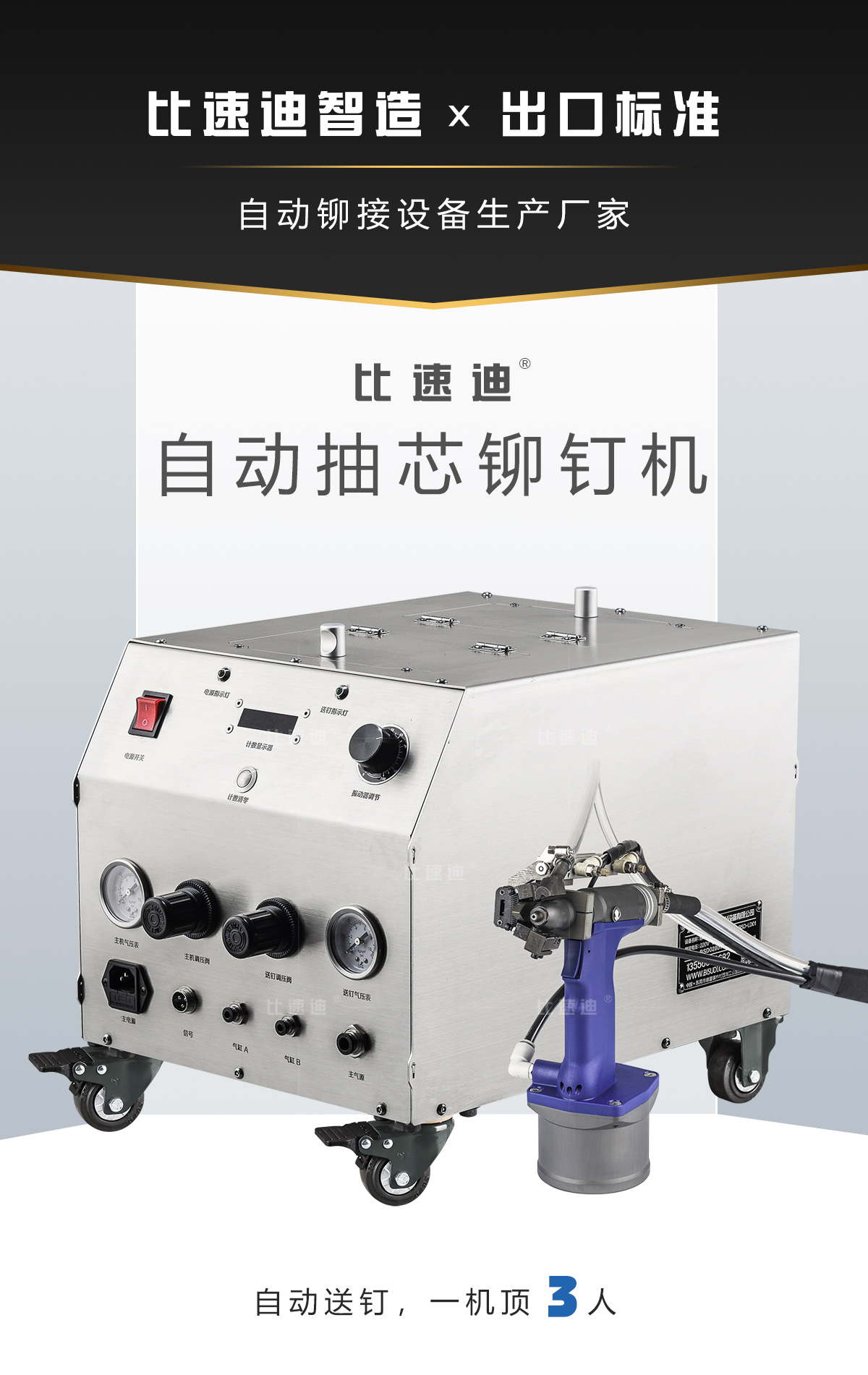

Automatic Riveting Machine [Product Introduction]

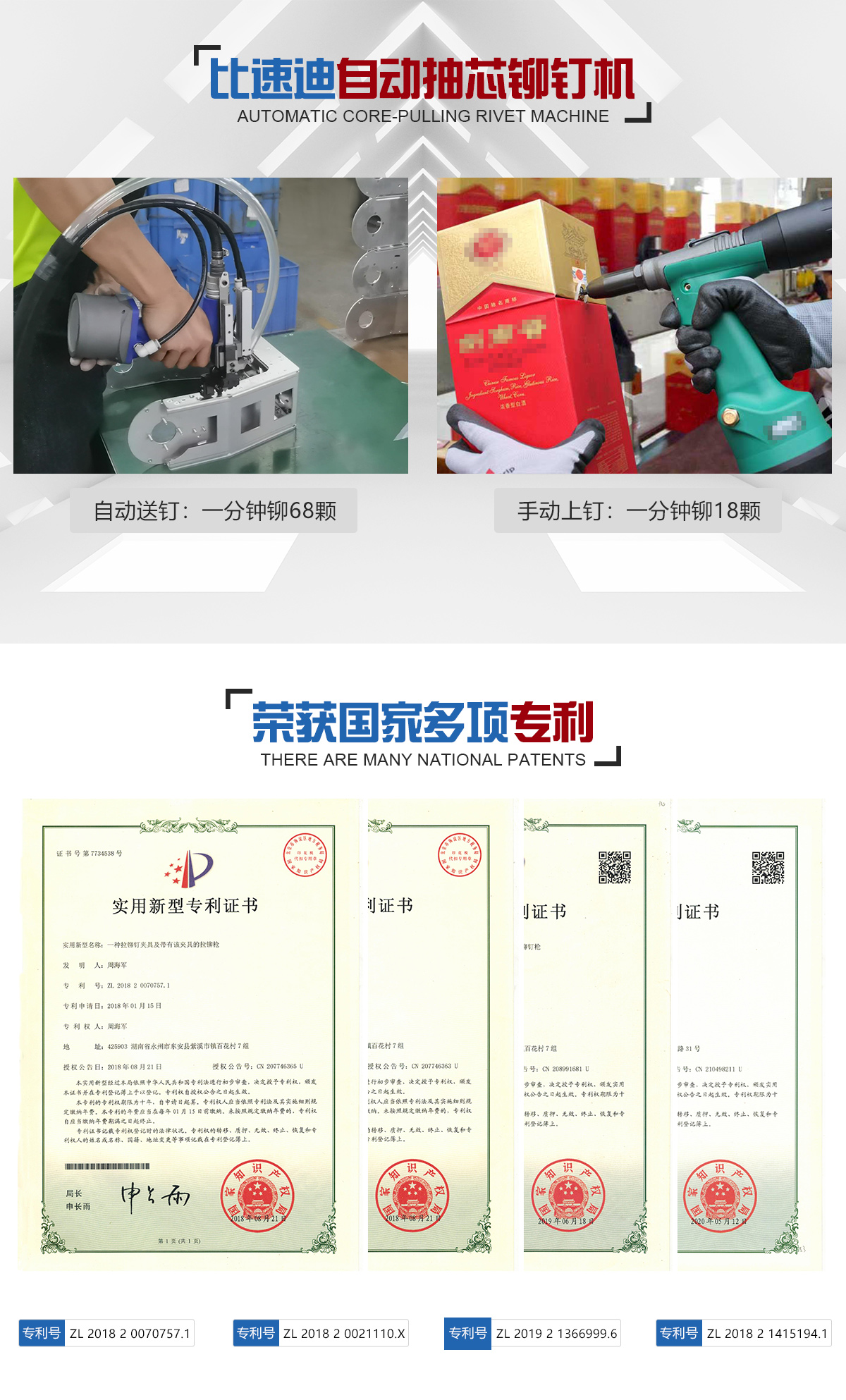

This page uses real-shot videos and on-site photos to visually demonstrate the actual production process of the BISUDI automatic riveting machine: rivets auto-load, auto-refill and auto-feed to the gun nozzle, the whole riveting process flows seamlessly without manually picking rivets one by one.
In the video you can see that the operator only needs to pick up the rivet gun and aim at the workpiece to complete continuous riveting, with stable cycle time and jam-free feeding. BISUDI's automatic riveting machine replaces 3 workers with one machine, helping enterprises quickly achieve automated and unmanned upgrading of the riveting process.

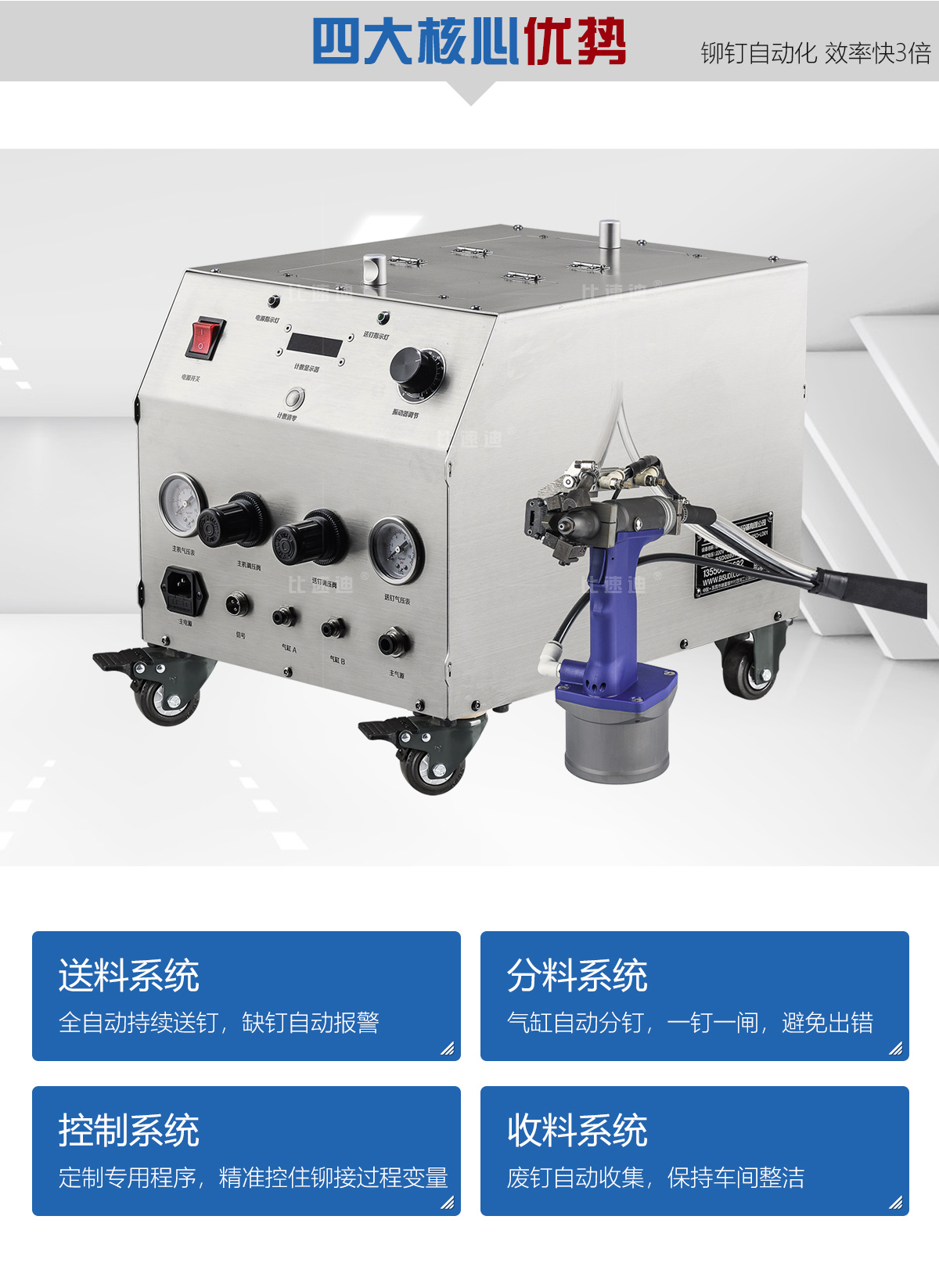

Automatic Riveting Machine [Core Features]
| No. | Core Feature | Details |
|---|---|---|
| 1 | Real-shot video | Real production scene demonstration, what you see is what you get |
| 2 | Auto-feed | Rivets auto-arrange and feed, no manual picking |
| 3 | Continuous operation | Auto-refill design, supports long-time continuous riveting |
| 4 | Easy operation | Beginners can get started quickly, lowering the labor threshold |
| 5 | Source manufacturer | Free on-site trial, cooperate only after you're satisfied |

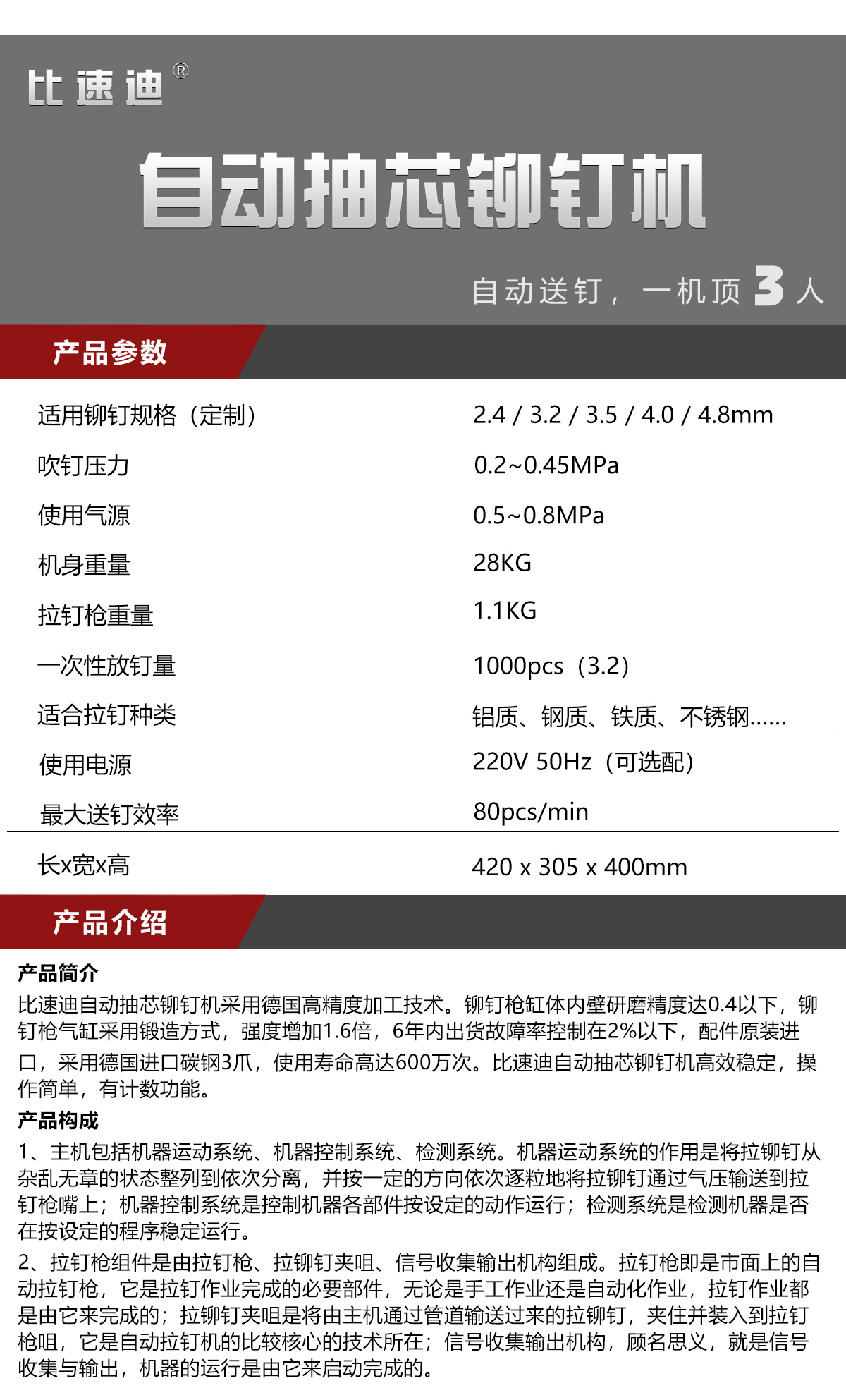

Automatic Riveting Machine [Technical Specifications]
| Parameter | Specification | Details |
|---|---|---|
| Brand | BISUDI | Direct from source manufacturer |
| Riveting capacity | 12800N | Standard model pull force, customizable specs |
| Cycle speed | About 80/min (about 1.2 sec/rivet) | Auto-feed, auto-refill, continuous operation |

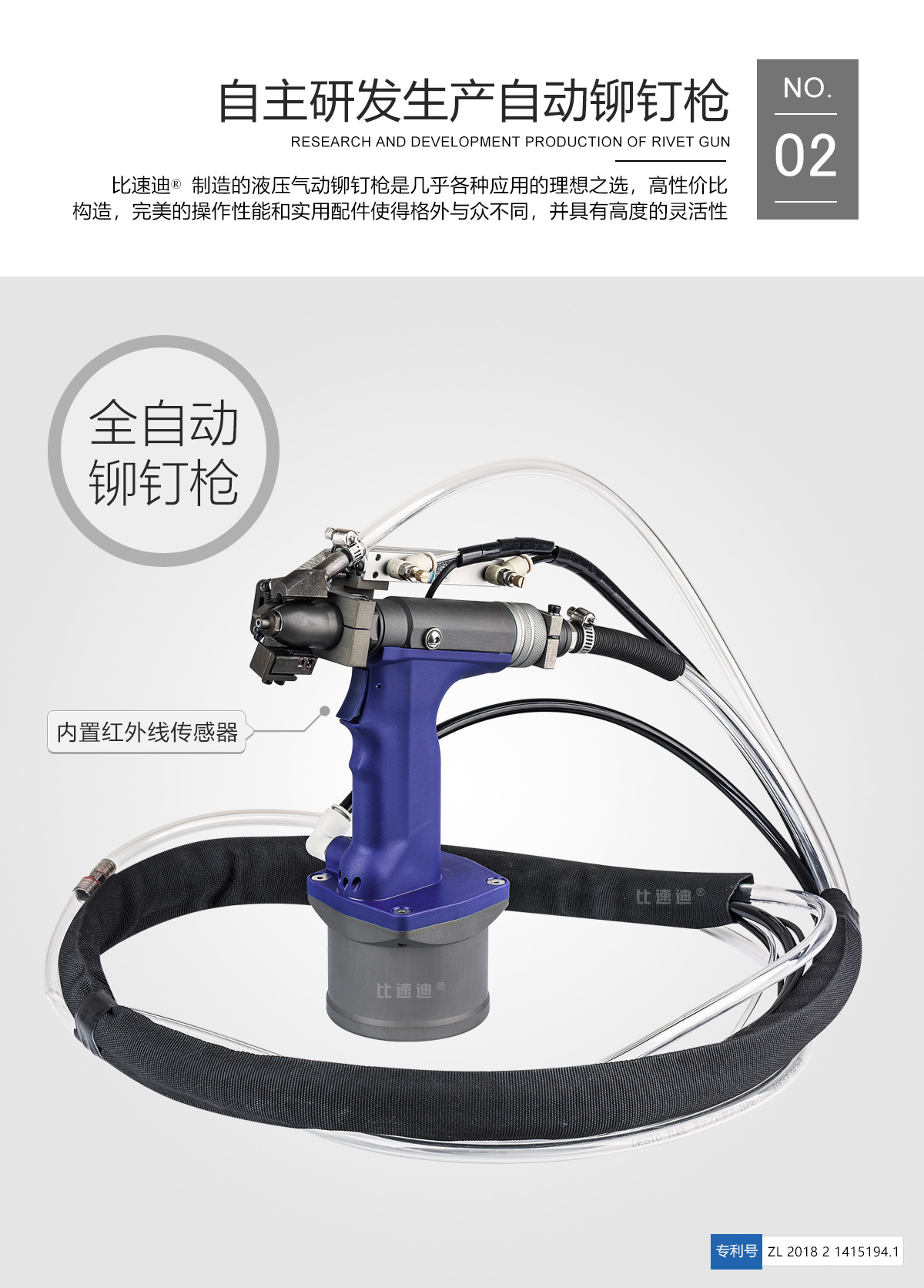

| Feeding method | Compressed-air auto-feed | Rivets reach the gun nozzle directly through the feed tube |

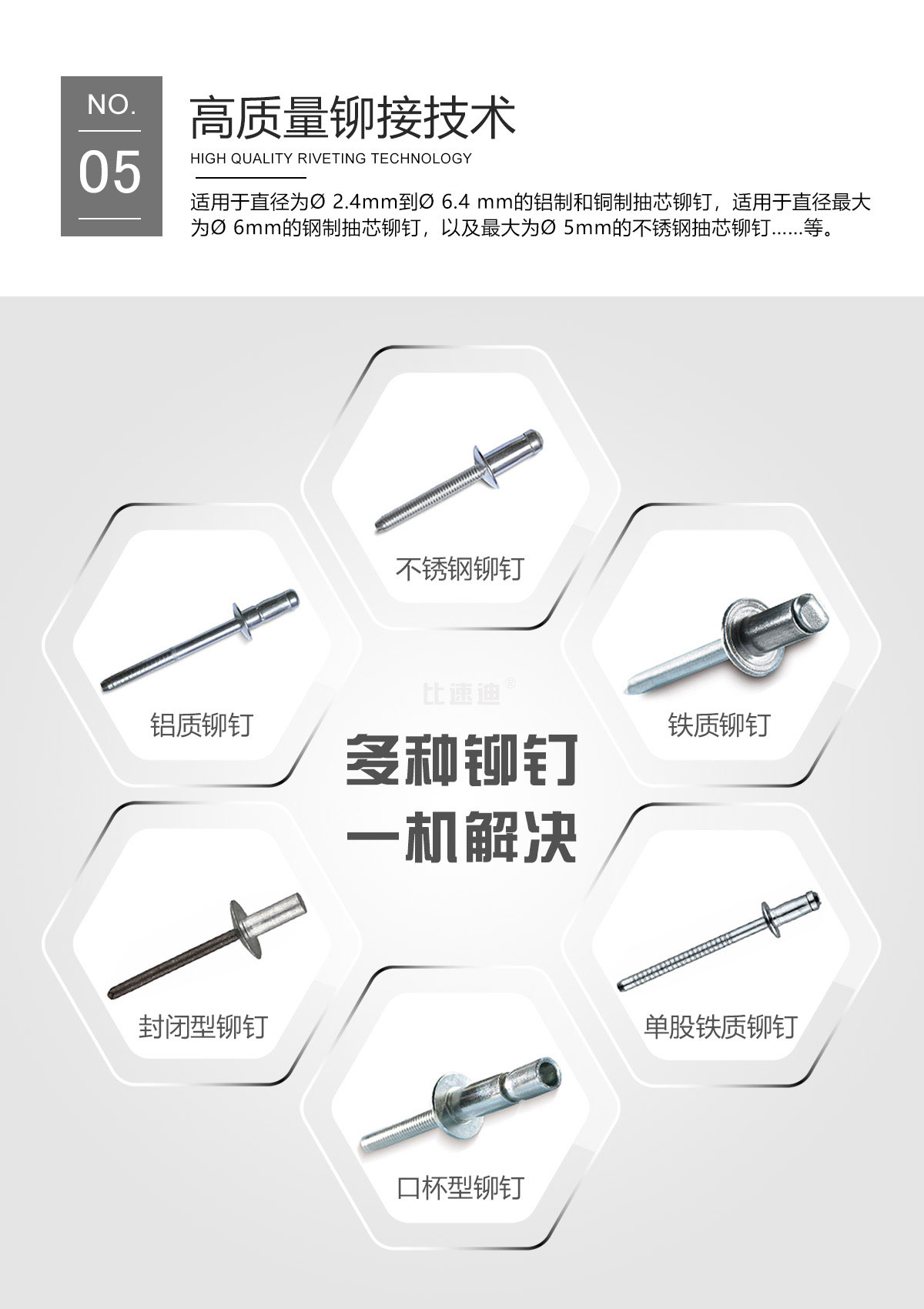

| Applicable rivets | Aluminum, steel, stainless-steel blind rivets | Customizable specs |
| Customization capability | Can be customized per rivet spec and workpiece | — |
| Working voltage | 220V / 50Hz | — |
| Main unit dimensions | 420×305×400mm | Workbench and fixtures designed per workpiece |
| Counting function | Digital counting display | — |

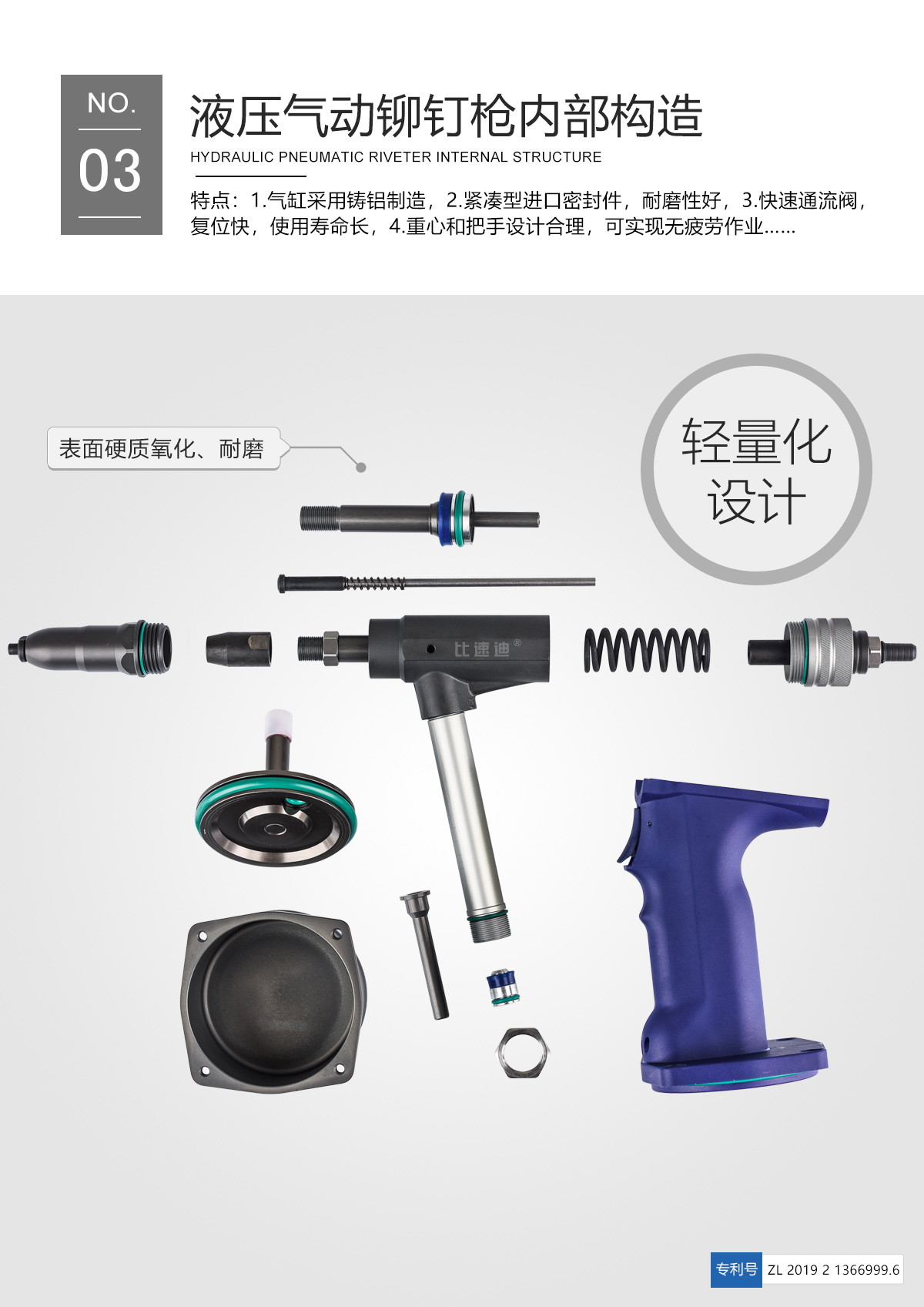

| Manufacturing process | Cylinder inner-wall grinding precision ≤0.4 | Forged piping, strength increased about 1.6x |
| Reliability | Shipping failure rate about 0.3% (6-year statistics) | German-imported carbon-steel three-jaw life about 6 million cycles |
| Warranty service | 1-year whole-machine warranty | Free nationwide delivery to your door |
Note: The above are common specs for standard models. Actual configuration varies with rivet size, pull force and non-standard workload, subject to final solution confirmation. Customers nationwide may book a free on-site trial to verify actual cycle time and yield.
Automatic Riveting Machine [Applications]
Suitable for industries requiring high-volume riveting, such as electronics, sheet metal, chassis, home appliances, lighting and automotive parts.
Automatic Riveting Machine [Service & Support]
BISUDI, as the source manufacturer, can arrange a video call or bring the equipment for an on-site trial. Call the nationwide service hotline to book a demo, and cooperate only after you're satisfied.
